                Manufacturer: Edelbrock

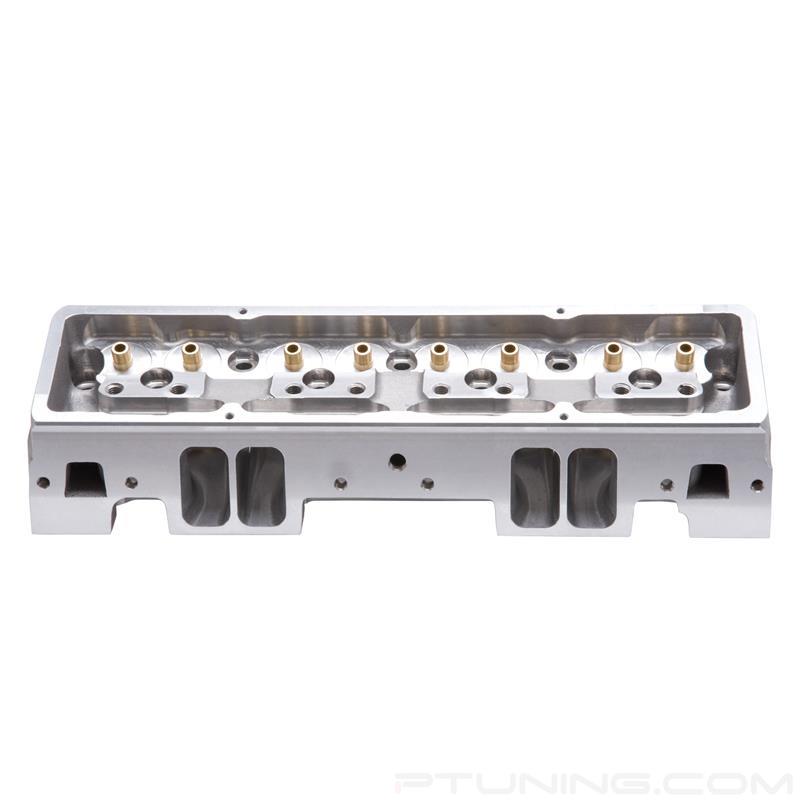

                Edelbrock 61205 - E-CNC 225 Complete Satin Satin Cylinder Head

                Be the first to review this product
                $1,563.95
                E-CNC 225 Complete Cylinder Head 225cc/88cc Int./Exh. Port Volume 500-600 HP Standard Intake Flange +0.200 Exh. Port Location Angled Plug Chevy Small Block 252-400
                SKU: EDE-61205
                Availability: Out of Stock - on backorder and will be dispatched once in stock.
                Fitment:
                Please Select Vehicle To Confirm Fitmenteditedit...
                Fitment Notes:

                The all-new E-Series are a step up in performance cylinder heads and are available in the E-205 for smallblock Ford and E-210 for small-block Chevy. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them are ideal for a spec series racer and larger displacement engines. Sold in Pairs.

                The all-new E-Series are a step up in performance cylinder heads and are available in the E-205 for smallblock Ford and E-210 for small-block Chevy. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them are ideal for a spec series racer and larger displacement engines. Sold in Pairs.

                Products specifications
                Combustion Chamber Volume 64cc
                Fitment Vehicle Specific
                Combustion Chamber Volume 64cc /68cc
                Cylinder Head Type Standard
                Deck Thickness 9/16"
                Deck Thickness 9/16in
                Emission N/A
                Engine Make/Size Chevy Small Block (262-400)
                Exhaust Port Locaiton N/A
                Exhaust port location N/A
                Exhaust Runner Volume 75cc / 88cc
                Exhaust Valve Diameter 1.60"
                Exhaust Valve Diameter 1.60in
                Exhaust Volume 75cc
                Finish Satin
                Guideplate Hardened Steel
                Intake Runner Volume 185cc / 225cc / 260cc
                Intake Valve Diameter 2.02" (185cc) / 2.10" (225cc)
                Intake Valve Diameter 2.02in
                Intake Volume 185cc
                Preparation Factory CNC Ported
                Pushrod Diameter 5/16"
                Pushrod Diameter 5/16in
                Rocker Stud 3/8" (185cc) / 7/16" (225cc)
                Rocker Stud 3/8in
                Spark Plug Fitment 14mm x .750 reach, gasket seat
                Spark Plug Fitment 14mm x 3/4 reach, gasket seat
                Type Complete
                Usage Racing
                Valve Angle 23°
                Valve Angle 23deg
                Valve Guides Manganese Bronze
                Valve Guides N/A
                Valve Spring Diameter 1.46"
                Valve Spring Diameter 1.46in
                Valve Spring Max Lift 0.575in
                Valve spring maximum lift .575"
                Valve Stem Diameter N/A
