PTUNING PTP-ENG-10103-EBCS - PnP Electronic Boost Control Solenoid (3-Port) - WRX

The PTUNING PnP 3-Port Electronic Boost Control Solenoid (EBCS) was specifically designed for turbocharged Subaru. The plug and play design allows for easy installation and direct connection to the existing factory wiring harness. Utilizing an accurate, fast responding electronic MACSOLENOID®, boost control is precise and consistent.

The 3-Port EBCS can be used in a standard 2-way or 3-way configuration. Control of the EBCS is handled by the factory ECU or any Pulse Width Modulated (PWM) capable standalone. Our EBCS can be used with an stock internal or aftermarket external wastegated turbocharger. The PnP Harness utitlizes a factory harness plug. The wiring harness is wrapped in a fire retardent wire sleeve. A custom vehicle-specific mounting bracket and hardware provides easy installation. The nickel-plated compact barb fittings, high temperature silicone hoses, and oem-style spring hose clamps provides a reliable and leak-free boost reference between the wastegate and compressor outlet. The kit includes everything you need for easy installation.

Features

• Plug and play wiring harness
• accurate and fast responding MACSOLENOID®
• Rated to 120psi
• 3-Port design, use as a 2-way or 3-way boost controller
• Use with stock interal or aftermarket external wastegated turbochargers
• Custom billet aluminum vehicle-specific mount

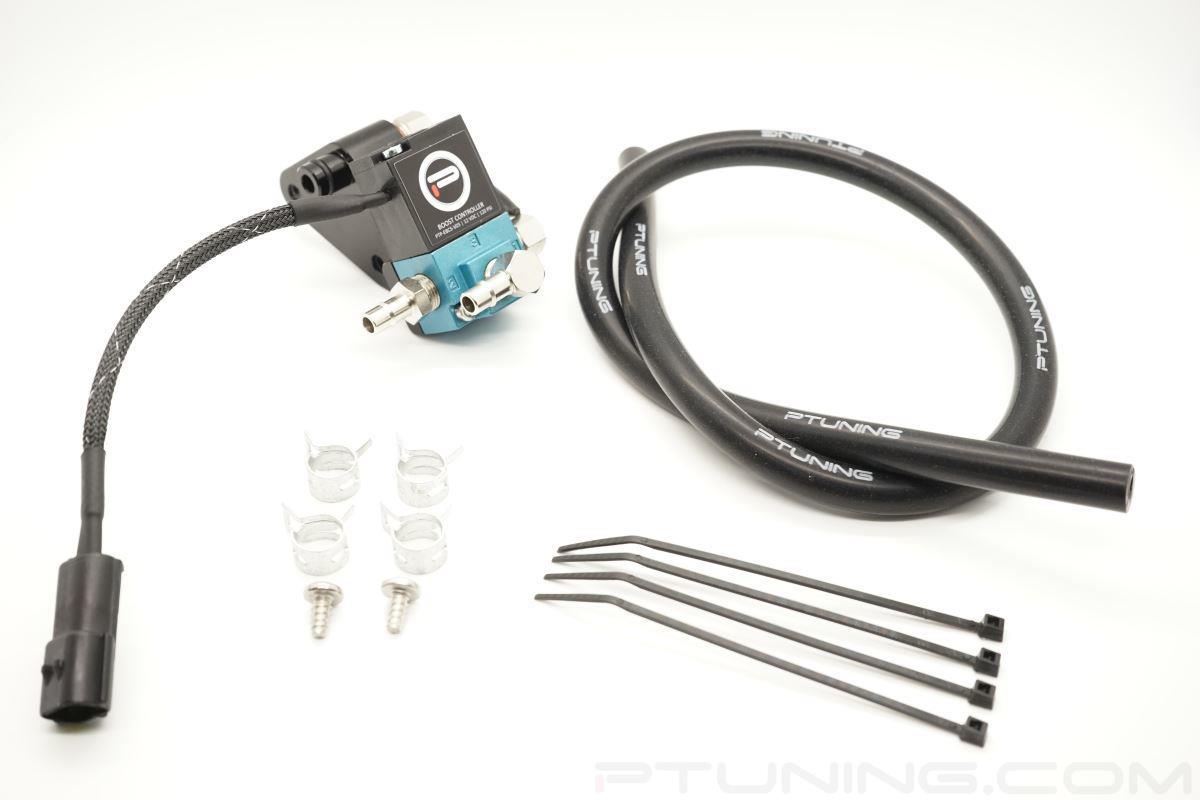

Kit Content

• PnP electronic boost control solenoid (EBCS)
• Custom billet aluminum mounting bracket
• 1/8" NPT x 1/4" barb corrosion-resistance nickel-plated compact fittings
• 1/8" NPT breather fitting
• Stainless steel mounting screw
• Spring hose clamps (dacromet finish)
• High temperature silicone vacuum hose
• 4" cable ties
• PTUNING vinyl window decals
• Detail installation instructions

**Professional ecu tuning/calibration is required after installation

One Year Warranty

Installation Instruction
