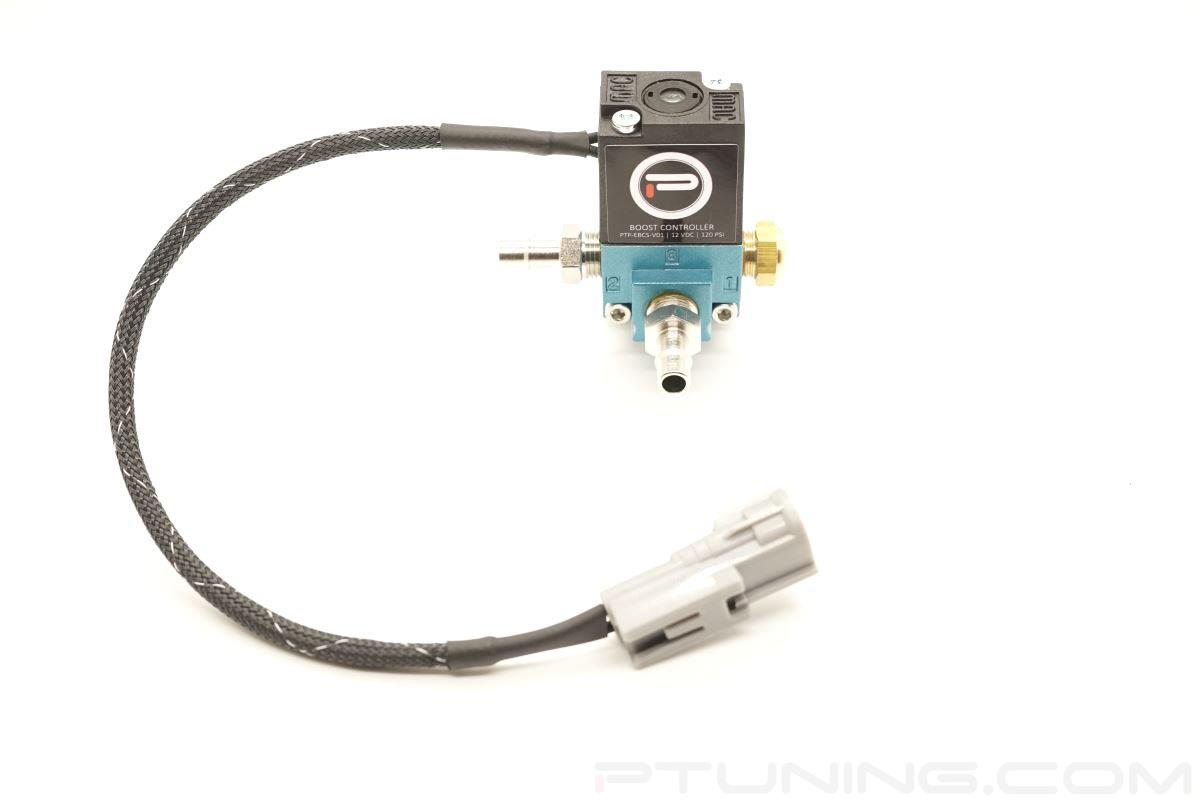

PTUNING PTP-ENG-90070-EBCS - PnP Electronic Boost Control Solenoid (3-Port) - FRS/BRZ/86

The PTUNING PnP 3-Port Electronic Boost Control Solenoid (EBCS) was specifically designed for turbocharged FRS/BRZ/86. The plug and play design allows for easy installation and direct connection to the existing factory EVAP plug. Utilizing an accurate, fast responding electronic solenoid, boost control is precise and consistent.  We've tuned hundreds of turbocharged 86 with our PTUNING EBCS.

The 3-Port EBCS can be used in a standard 2-way or 3-way configuration. Control of the EBCS is handled by the factory ECU using Ecutek or any Pulse Width Modulated (PWM) capable standalone or piggyback ECU. Our EBCS can be used with an internal or external wastegated turbocharger. The PnP Harness utitlizes a factory harness plug. The wiring harness is wrapped in a fire retardent wire sleeve. A custom mounting bracket and hardware provides easy installation. The nickel-plated compact barb fittings, high temperature silicone hoses, and oem-style spring hose clamps provides a reliable and leak-free boost reference between the wastegate and compressor outlet. The kit includes everything you need for easy installation.

Features

• Plug and play wiring harness
• accurate and fast responding MACSOLENOID®
• Rated to 120psi
• 3-Port design, use as a 2-way or 3-way boost controller
• Use with interal or external wastegated turbochargers
• Custom aluminum vehicle-specific mount

Kit Content

• PnP electronic boost control solenoid (EBCS)
• Custom aluminum mounting bracket
• 1/8" NPT x 1/4" barb corrosion-resistance nickel-plated compact fittings
• 1/8" NPT breather fitting
• Spring hose clamps (dacromet finish)
• High temperature silicone vacuum hose
• M6 hex flange mounting bolt
• 4" cable ties
• PTUNING vinyl window decals
• Detail installation instructions

**Professional ecu tuning/calibration is required after installation

One Year Warranty

Installation Instruction
